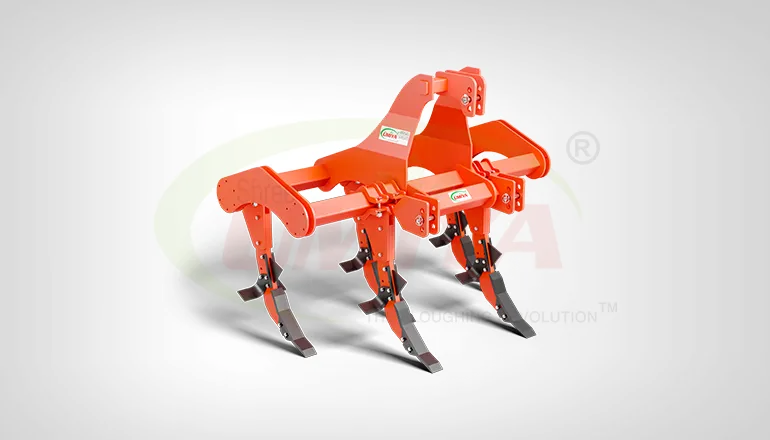

Subsoiler
Chetak
-
Model
Chetak
-
Series
Subsoiler
-
Brand
Shree Umiya
-
Help
Product Specification
| Model | CHETAK |
|---|---|
| NUMBER OF TYNE | 5 TYNE |
| 3 POINT LINKAGE | CATAGORY II |
| DISTANCE BETWEEN TYNE | 750 MM (ADJUSTABLE) |
| DIMENSION (L x W x H) | 1855 X 1120 X 1415 MM |
| WORKING WIDTH (MAX) | 1815 MM |
| DEPTH (MAX) | 600 MM |
| SAFETY DEVICE | SHARE BOLT |
| WEIGHT (KG) | 442 KG |
| TRACTOR POWER | 60 HP AND ABOVE (DEPEND ON SOIL CONDITION) |

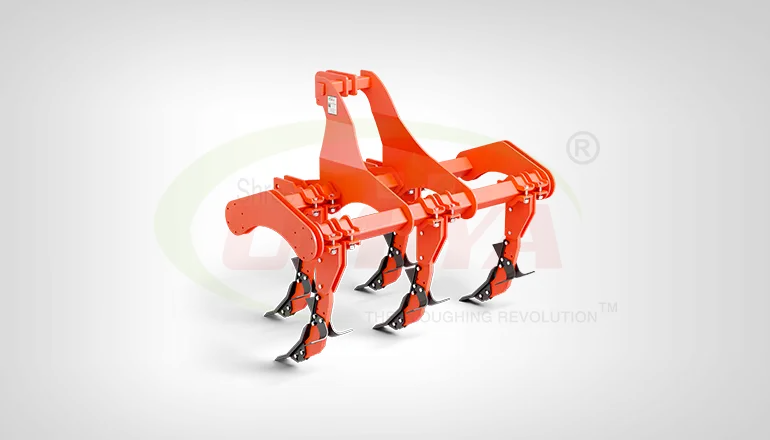

Chetak Light
-
Model
Chetak Light
-
Series
Subsoiler
-
Brand
Shree Umiya
-
Help
Product Specification
| Model | CHETAK | CHETAK | CHETAK |
|---|---|---|---|
| NO. OF TYNE | 3 | 5 | 7 |
| 3 POINT LINKAGE | CATAGORY - II | CATAGORY - II | CATAGORY - II |
| DISTANCE BETWEEN TYNE | 380 | 380 | 380 |
| DIMENSION (L X W X H) | 1590 X 1025 X 1350 | 1825 X 1025 X 1350 | 2585 X 1025 X 1350 |
| WORKING WIDTH (MAX) | 1065 | 1825 | 2585 |
| DEPTH (MAX) | 510 | 510 | 510 |
| SAFETY DEVICE | SHARE BOLT | SHARE BOLT | SHARE BOLT |
| WEIGHT | 300 | 365 | 450 |
| TRACTOR POWER | 40 TO 50 | 45 TO 55 | 55 TO 65 |
